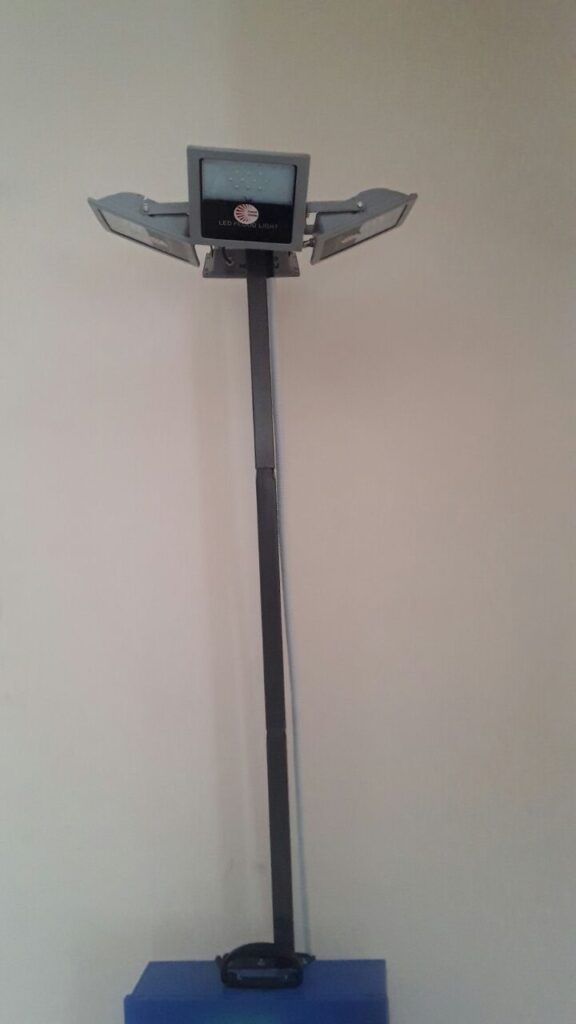

This product is basically an emergency light which can be used on  remote places where grid line is not available and also can be used wherever rescue operation and construction is there because of its unique features and design.it is very useful for those people who are involving in rescue , emergency and on spot service kind of operations.

FEATURES

  • Elegant look and easy to carry.
  • Portable and flexibility to operate single and multiple light
  • Adjustable height.
  • Light weight
  • 10 hrs battery backup and easy to charge with mains supply
  • LCD for displaying battery volt, charging  percentage and charging indication.
  • 360 degree rotation.
  • Long life li-ion battery.

TECHNICAL SPECS

  • Li-ion battery 14.8 volt
  • Charging circuit capacity 20volt 15amp.
  • High power led
  • Mains supply 200vac-250vac
  •

APPLICATION

Remote work area, rescue operations, service

USER’S MANUAL

FRONT VIEW- LCD DISPLAY, LED RED, BLUE LED

CD DISPLAYL

1ST LINE

  • COMPANY NAME, BATTERY VOLTAGE
  • CHARGING PERCENTAGE, CHARGING IN PROGRESS, LOW BATT., CHARGING DONE
  • LED RED- LOW BATTERY INDICATION(BLINK)
  • BLUE LED-   BLINKING CHARGING IN PROGRESS., SOLID ON  CHARGING DONE

SIDE VIEW- SQUARE CONNECTOR, ROUND CONNECTOR, SWITCH

  • SQUARE CONNECTOR- POWER CABLE FOR CHARGING
  • ROUND CONNECTOR- TO CONNECT FOUR NOS OF LIGHT
  • SWITCH – 0N/OFF WHOLE UNIT

INSIDE VIEW- FUSE HOLDER, PUSH SWITCHES

  • SWITCHES- FOUR SWITCHES TO TURN ON/OFF INDIVIDUAL LIGHTS.
  • FUSE HOLDER- MAIN FUSE RATING 30AMP
